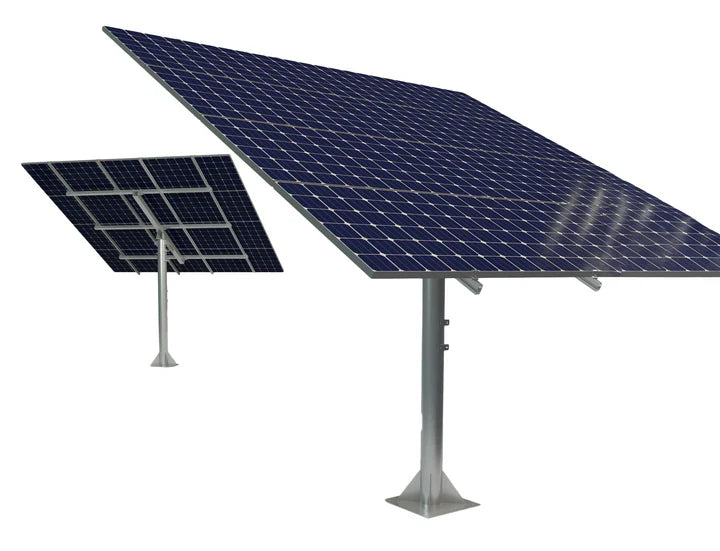

Elios Arbora P8 | Mounting System for 8 Solar Panels | Pole Mounting System

This solar panel mounting system is one of the best mounting solutions for your home, off-grid cabin, or almost any other need you can imagine.

Pole mounts include two 95" long cylinders each, allowing solar panels to be raised up to 14 feet off the ground. This way, shading from trees or other obstacles will no longer hinder the efficiency of your installation.

Additionally, the tilt of the solar panels can be manually adjusted from 10 degrees to 70 degrees for optimal performance depending on the season and to facilitate snow removal in winter.

It is recommended to install the pole mounts on the ground, with a concrete base using steel rods and anchor bolts for maximum safety. This way, even in high winds, your installation will remain perfectly stable.

You can install up to 8 solar panels on pole-mounted racks, producing a peak power of about 3200 to 4400 watts. Additionally, you can use bifacial solar panels that harness the sun's reflection off the environment, increasing production by about 1000 watts to a maximum capacity of 5500 watts.

Included in the box:

• A detailed assembly manual describing the assembly steps
• 2 fixing posts
• 1 main amount and 1 secondary amount
• 2 steel bars
• 12 mounting brackets
• 4 rails
• 12 intermediate clamps
• 8 end clamps
• 6 U-shaped plugs
• 1 M20 150 bolt
• 2 M20 220 bolts
• 4 M20 50 bolts
• 1 M12 65 bolt
