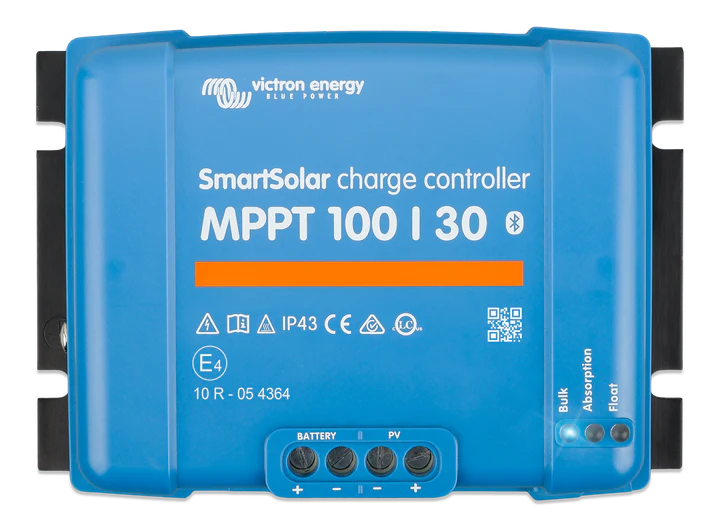

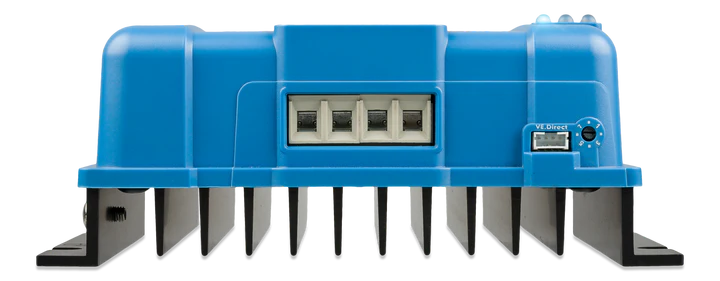

Victron SmartSolar Charge Controller MPPT 100/30 | SCC110030210

Victron SmartSolar Charge Controller

The Victron SmartSolar Charge Controller is a cutting-edge solution for optimizing the energy harvest from your photovoltaic modules to your batteries. Designed for efficiency and reliability, it ensures maximum energy conversion even in challenging conditions like partial shading or rapidly changing light intensities.

Key Features

• Ultra-Fast MPPT (Maximum Power Point Tracking): Increases energy harvest by up to 30% compared to PWM controllers and up to 10% compared to slower MPPT controllers.
• Advanced MPPT Detection for Partial Shading: Ensures the controller locks onto the optimal Maximum Power Point for maximum energy yield.
• High Conversion Efficiency: Exceeds 98% efficiency without requiring fan cooling.
• Fully Programmable Charge Algorithm: Features 8 pre-programmed charge algorithms, easily selectable via a rotary switch.
• Comprehensive Electronic Protection: Safeguards against overheating, short circuits, polarity reversal, and module current reversal.
• Internal Temperature Sensor: Automatically adjusts the charging voltage based on temperature fluctuations.
• Real-Time Data and Remote Management: Monitor and control the system wirelessly via the VictronConnect app on Bluetooth-enabled devices.

Enhanced Energy Harvest

The SmartSolar Charge Controller delivers an ultra-fast MPPT feature that significantly improves energy harvesting by dynamically adjusting to changing light conditions. This advanced technology ensures a higher energy yield compared to conventional controllers, making it ideal for variable weather conditions such as cloudy skies or shaded installations.

Optimized for Partial Shading

With its advanced Maximum Power Point Detection, the controller excels in partial shading scenarios where multiple Maximum Power Points may exist. Unlike conventional MPPTs, the SmartSolar algorithm identifies and locks onto the optimal point, ensuring maximum energy efficiency.

Smart Connectivity

The SmartSolar charge controller offers seamless wireless management through the VictronConnect app. Using your smartphone or other Bluetooth-enabled devices, you can monitor, control, and update the system effortlessly. It also supports direct connection to Victron’s Color Control GX, computers, or other compatible devices for enhanced monitoring and integration.

Comprehensive Safety and Protection

The SmartSolar Charge Controller is built with advanced safety features, including:

• Overheating protection with automatic current reduction above 40°C.
• Short circuit and polarity reversal safeguards.
• Module current reversal protection.

Technical Specifications

• Brand: Victron Energy
• Charge Current: 30A
• DC System Voltage: 12V
• Maximum Input Voltage: 100V
• Lithium-Compatible: Yes
• Dimensions:
  • Height: 13 inches
  • Length: 9 inches
  • Width: 20.5 inches

Applications

The Victron SmartSolar Charge Controller is ideal for off-grid and backup power solutions, ensuring consistent performance for solar systems in RVs, boats, and remote installations.

Related Products

• Victron Energy MultiPlus 12/3000/120-50 120V VE.Bus
• Victron Energy Cerbo GX
• Lithium Battery Solution

Enhance your solar power system's efficiency and reliability with the Victron SmartSolar Charge Controller. Designed to adapt to dynamic conditions, it ensures your batteries are charged optimally and safely.
